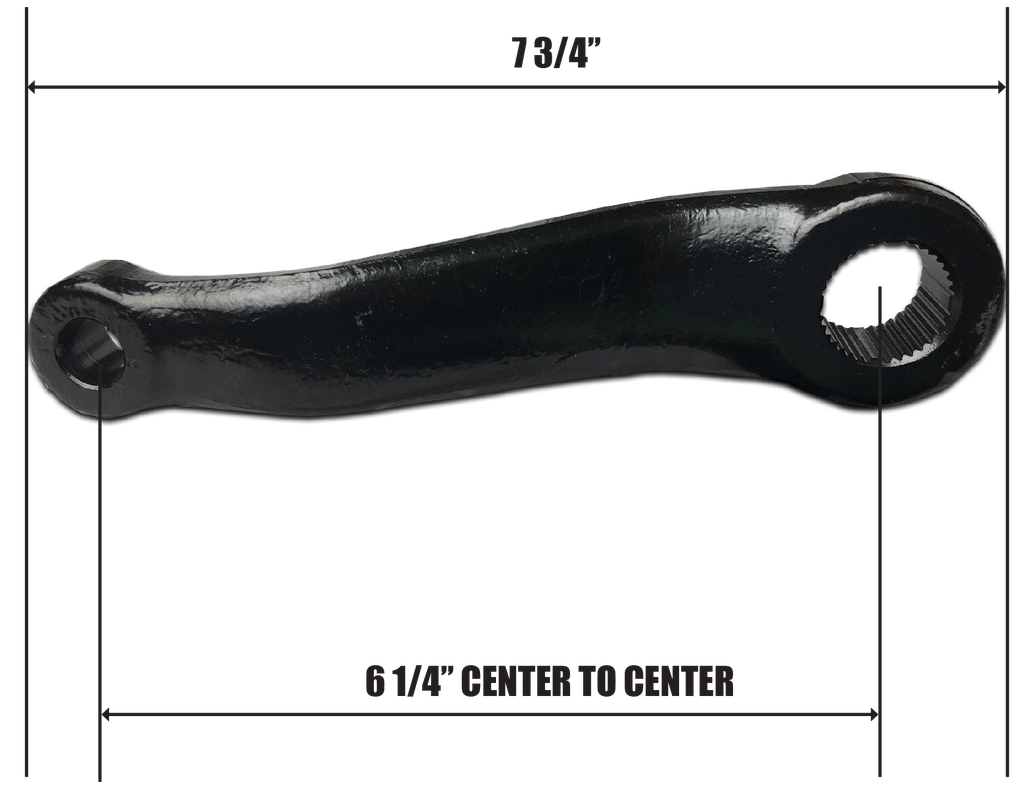

GM Metric 605 Pitman Arm - 605

GM Metric - 605 Pitman Arm

These are refurbished Pitman Arms

This fits GM manual 525 series Saginaw steering box and 605 series Saginaw power steering box.

1" -32 Pitman Shaft

Drag link Tapered hole measures .550" major and .460 minor I.D.

Fits Drag Links Below

*1978-88 CHEVY CHEVELLE, EL CAMINO, MALIBU, & MONTE CARLO
*1978-87 BUICK CENTURY, LUXUS, REGAL, & SPECIAL
*1978-88 OLDSMOBILE CUTLASS, F85, VISTA CRUISER, 4-4-2, & CALAIS
*1978-81 PONTIAC GTO, LEMANS, GRAND AM (EXCEPT 1985-89), GRAND LEMANS, TEMPEST, & T37



Key Features:

  • Refurbished unit, inspected for reuse
  • Steel construction
  • Fits GM metric-style 605-series steering box (525 series Saginaw manual / 605 series Saginaw power steering)
  • 1"-32 spline pitman shaft for correct output-shaft engagement
  • Tapered drag link hole: .550" major / .460" minor I.D.
  • OE-style geometry for a correct, bolt-in fit
  • Fits 1978-88 Chevrolet Chevelle, El Camino, Malibu, Monte Carlo; 1978-87 Buick Century, Regal, Special; 1978-88 Oldsmobile Cutlass, F-85, Vista Cruiser, 4-4-2, Calais; and 1978-81 Pontiac GTO, LeMans, Grand Am (except 1985-89), Grand LeMans, Tempest, T37
  • Sold each
  • Comparable to Allstar Performance AAF-AL56356
$ 79.99 $ 79.99

Add to cart
Buy now
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Internal Reference: PRPC605

Specification

Brand Name
PRP
Part Number
605
Product Type
Pitman Arm
Steering Box Type
GM Metric 605
Material
Steel
Quantity
Each
Application
Front Steering Linkage

Description

The PRP GM Metric 605 Pitman Arm (Part #605) connects the output shaft of a GM metric-style 605-series steering box to the center link, converting steering input into the side-to-side motion that steers the front wheels. It is manufactured to OE-style geometry for a correct, bolt-in fit on applications running the 605 metric steering box.

Built from steel for durability under sustained steering loads, this pitman arm is a direct replacement for a worn, bent, or stripped factory arm, helping restore accurate steering geometry and eliminate play in the linkage. It has a 2" drop.

Disclaimer

This product must be correctly matched to your application's requirements (fluid type, pressure, and fitment) before use. Improper selection, installation, or use may result in product failure, leakage, or damage, and could cause serious injury. Installation by a qualified professional is recommended. This product may contain chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.
